您现在的位置:上海拓准电子科技有限公司> 产品资讯-台湾moujen行程开关-MJ

防油限制開關  (Made in Taiwan)
功能 :
可配合各種不同之連桿及頭
具多種使用特性曲線
接線頭具帽式覆蓋螺絲
防塵、防油、防水
不鏽鋼主零件
規格及尺寸標準化 1/2” conduit entry.
適用溫度 +15°F  to +175°F  (-10℃ to  +80℃)
所有密封式限制開關都是雙迴路限制開關,1NO(常開)與1NC(常閉 )迴路,各迴路接點俱為兩段式絕緣



  台湾moujen行程开关
電氣迴路 :
台湾moujen行程开关
額定電壓 :
10A

125 or 300V AC(resistive)

0.8A

125 VDC(resistive)

0.4A

250V DC

1/2HP

125 V AC

1HP

250 V AC



特性 :       台湾moujen行程开关
Operating speed

1mm to 2m/sec

Operating frequency

Mechanically: 120 operations/min.
Electrically: 30 operations/min.

Contact resistance

15m max.(initial)

Insulation resistance

100M min.(at 500 VDC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
2,200 VAC, 50/60 Hz for 1 minute between each terminal and non-current-Carrying metal part and between each terminal ground.

Vibration

Malfunction durability:10 to 55Hz 1.5mm double amplitude

Shock

Mechanical durability:
Approx.1,000m/sec2 (approx. 100G's)
Malfunction durability:Approx.300m/sec2 (approx.30 G's)

Ambient operating temperature

Operating:-10 to +80

Humidity

95% RH max

Service life

Mechanically:
15,000,000 operations min
Electrically:(2.5A, 110VAC)MAX
500,000 operations min.

Degree of protection

IEC 529 class IP65
(Sealed accessories requirement)


  台湾moujen行程开关

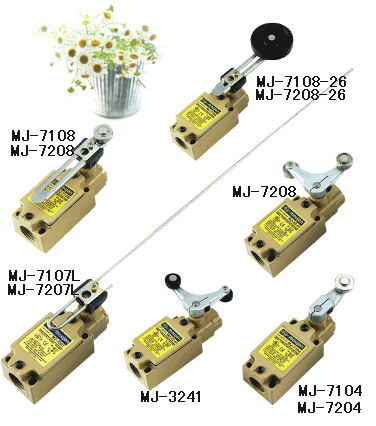

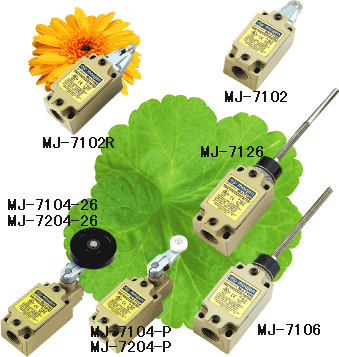

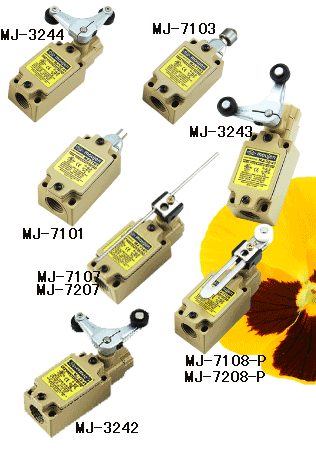

ORDER GUIDE:
標準型~兩個螺絲孔蓋 :
MJ-7101

MJ-7102

MJ-7102R

MJ-7103

MJ-7104

MJ-7106

MJ-7126

MJ-3241

MJ-3242

MJ-3243

MJ-3244

MJ-7107

MJ-7107L

MJ-7108

MJ-7204

MJ-7207

MJ-7207L

MJ-7208

MJ-7000


三個螺絲孔蓋 (定製品):
MJ-7101O

MJ-7102O

MJ-7102RO

MJ-7103O

MJ-7104O

MJ-7106O

MJ-7126O

MJ-3241O

MJ-3242O



MJ-3243O

MJ-3244O

MJ-7107O

MJ-7107LO

MJ-7108O

MJ-7204O

MJ-7207O

MJ-7207LO

MJ-7208O



塑膠滾輪 (定製品):
MJ-7104-P

MJ-7204-P

MJ-7108-P

MJ-7208-P


50mm 橡膠滾輪 (定製品): 50mm
MJ-7104-26

MJ-7204-26

MJ-7108-26

MJ-7208-26


金屬滾輪 (定製品):
MJ-3241-M

MJ-3242-M

MJ-3243-M

MJ-3244-M

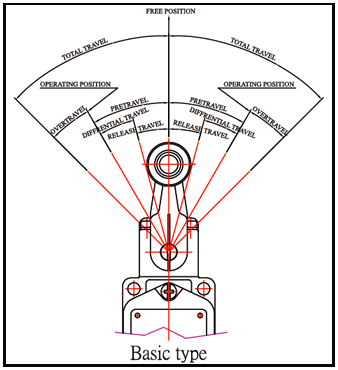

ROTARY ACTUATION :
台湾moujen行程开关
台湾moujen行程开关
OVERTRAVEL TYPE :
The Overtravel Type is a limit switch which is provided with a greater OT to facilitate dog setting.
Since this type is indentical to the Basic Type in dimension, both types are interchangeable.
The Overtravel Type is classified into two versions -71 series and -72 series.

-71 series
The head of -71 series switch can be installed in any of the four directions:45° operation on either side-possible

-72 series
The head of -72 series switch can be installed only in two directions, forward and backward:
90° operation on either side-possible


台湾moujen行程开关
  REMARK :
MJ-7107L,MJ-7207L→ 395mm 長柄: 395mm

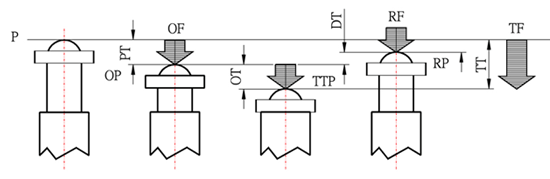

IN-LINE PLUNGER ACTUATION :
Characteristics:OF-Operating Force;
PT-Pretravel; OT-Over Travel ; DT-Differential Travel
RF-Release Force; OP-Operation Position;
TF-Travel Force; RP-Release Position; TT-Total Travel



台湾moujen行程开关
